Home > Laptop Graphics Card > nVidia GeForce 8400 8400M GS 8400MGS 128MB DDR2 MXM II Video VGA Graphic Card G86-604-A2 for Acer 4520G 4720G 5520G 5720G 7720G

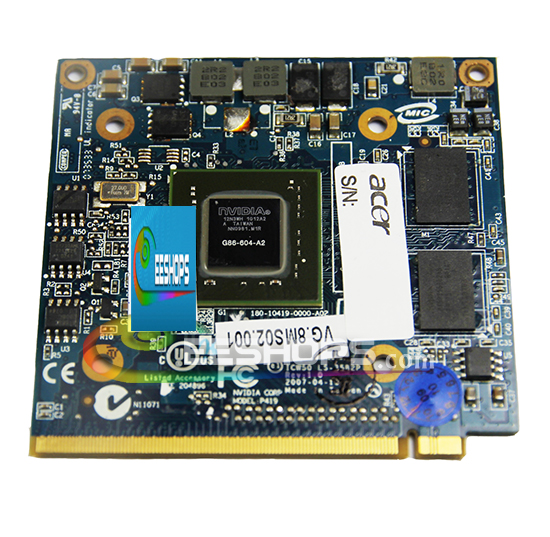

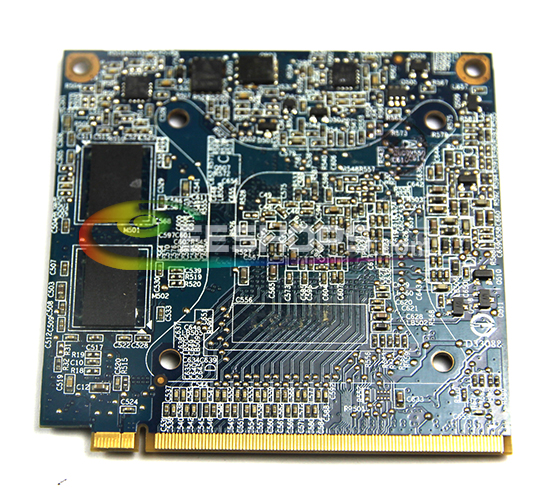

nVidia GeForce 8400 8400M GS 8400MGS 128MB DDR2 MXM II Video VGA Graphic Card G86-604-A2 for Acer 4520G 4720G 5520G 5720G 7720G

$45.99

Model: 8400M GS
Units in Stock: 146

Description

original nVidia GeForce 8400 8400M GS 8400MGS 128MB DDR2 MXM II Video VGA Graphic Card G86-604-A2 for Acer 4520G 4720G 5520G 5720G 7720G

Factory Refurbished, tested in fully work condition, with Acer Bios

New Upgrade Version 01R, better !

30 Days DOA Warranty

Product Description

NVidia GeForce 8400M GS is the DirectX 10 capable successor of the GeForce Go 7400 for laptops and technologically a slower 8600M GS video card. The performance is slightly above the 7400 and therefore it can represent current games fluently with reduced details / resolutions. For people who play occasionally, it may be sufficient.

The particularity of this video card are the "Unified Shader". Pixel- and vertex-shaders do not exist any more but 16 of the so called stream processors do the graphic work.

One advantage of the GeForce 8000 series is the integrated PureVideo video processor. It can support the CPU in decoding H.264, VC-1, MPEG2, and WMV9 encoded videos in HD quality > PureVideo Product Comparison

Compared to desktop graphics adapters, the 8400M GT is a bit slower than the 8500 GT (because of the lower memory speed).

nVidia GeForce 8400 8400M GS 8400MGS 128MB DDR2 MXM II Video VGA Graphic Card G86-604-A2 for Acer 4520G 4720G 5520G 5720G 7720 Features

The card compatible MXM slot in Laptop, some of laptop need update bios.

Brand: nVidia

Model: Geforce 8400M GS

Memory Size: 128MB

Type: MXM-II (73mm x 78mm)

Manufacturer	NVIDIA
Series	GeForce 8M
Codename	G86M
Pipelines	16 - unified
Core Speed *	450 MHz
Shader Speed *	900 MHz
Memory Speed *	600 MHz
Memory Bus Width	128 Bit
Memory Type	GDDR3 / GDDR2
Max. Amount of Memory	512 MB
Shared Memory	no
DirectX	DirectX 10, Shader 4.0
Current Consumption	14 Watt
Transistors	210 Million
technology	80 nm
Features	900 MHZ Shader-Taktfrequenz, PureVideo Technologie (H.264, VC-1, MPEG2, WMV9 Decodierbeschleunigung), HDCP-f?g, PowerMizer 7.0 Energieverwaltung (dynamisches umschalten zwischen Leistung und Energiesparen), HDR (High Dynamic-Range Lighting), designed f?dows Vista, 16x Vollbild AA, 16x winkelunabh?iges AF, 128-Bit HDR Ausleuchtung mit AA, PCI-E 16x, OpenGL 2.1, Gigathread Technologie
Notebook Size	small and light
Date of Announcement	09.05.2007

Compatible

Please check Before you place the bid

Below is a test from one of the professional testers, and of coz that's just part of the machine which works with this card. (User need to check carefully to see whether this card works on your laptop or not)

Acer

Aspire 4520G - MXM-II, 8400M G, 8400M GS, 8600M GS ,8600M GT, HD 3650
Aspire 4710G - MXM-II, HD 2400XT, 8600M GT,ATI 3650(D3)
Aspire 4720G - MXM-I, 8400M G
Aspire 4730ZG-MXM-II, hd 3470,9600M GT
Aspire 4920G - MXM-II, HD 2400XT, HD 3650, HD 3470
Aspire 4930G - MXM-II, 9600M GS, 9600M GT, FX-770M
Aspire 5520G - MXM-II, 8400M G, 8400M GS, 8600M GS, 9300M G, 8600M GT
Aspire 5530G - MXM-II, HD 3470, HD 3650
Aspire 5710G - MXM-II, HD 3650
Aspire 5720G - MXM-II, 8400M GS, 9500M GS, HD 3650,HD 3470
Aspire 5739G - MXM-A HD 4570, GT 130M, GT 240M
Aspire 5920G - MXM-II, 8600M GS, 8600M GT, 9500M GS,HD 3650,HD 4650
Aspire 5930G - MXM-II, 9600M GT,FX-770M
Aspire 6530G - MXM-II, HD 3470, HD 3650, HD 4570, HD 4650
Aspire 6920G - MXM-II, 9500M GS, HD 3650, 9600M GT, 9600M GS
Aspire 6930G - MXM-II, 9300M GS, 9600M GS, 9600M GT, HD 4650, 8600M GT
Aspire 6935G - MXM-II, 9600M GT,FX-770M
Aspire 7520G - MXM-II, 8400M G, 8600M GS, HD 3650
Aspire 7720G - MXM-II, 8400M GS, 9300M G, 9300M GS, 9500M GS, 8600M GT, 9600M GT
Aspire 8730G - MXM-III, 9600M GT,FX-770M
Aspire 8920G - MXM-II or III, II-9500M GS, HD 3650, III-9650M GS,III-9700M GT,9800M GS
Aspire 8930G - MXM-II or III, II-9600M GT,III-9700M GT,9800M GS,9800M GT, 9800M GTX
Aspire 9920G - MXM-II, 8600M GT

Extensa
Extensa 4630G - MXM-I or II, 9300M GS
Extensa 5420G - MXM-II, HD 2400XT
Extensa 5610G - MXM-II, HD 2300
Extensa 5620G - MXM-II, X2500, HD 2400XT
Extensa 5630G - MXM-II, HD 3470
Extensa 7620G - MXM-II, HD 2400XT

TravelMate
TravelMate 4730G - MXM-I or II, 9300M GS
TravelMate 5520G - MXM-II, HD 2400XT, HD 2600
TravelMate 5530G - MXM-II, HD 3470
TravelMate 5710G - MXM-II, HD 2300
TravelMate 5720G - MXM-II, HD 2400XT, X2500,
TravelMate 5730G - MXM-II, HD 3470
TravelMate 6593G - MXM-II, HD 3470
TravelMate 7520G - MXM-II, HD 2400XT, HD 2600
TravelMate 7530G - MXM-II, HD 3470
TravelMate 7720G - MXM-II, HD 2400XT, X2500
TravelMate 7730G - MXM-II, 9300M GS, HD 3470, 9600M GT

MXM 2.1 standard
MXM-I - size: w-70mm l-68mm, connector: standard
MXM-II - size: w-73mm l-78mm, connector: standard
MXM-III - size: w-82mm l-100mm, connector: standard
MXM-IV - size: w-82mm l-115mm, connector: as standard + extra pin
MXM-HE - size: w-82mm l-100mm, connector: as standard + extra pin
