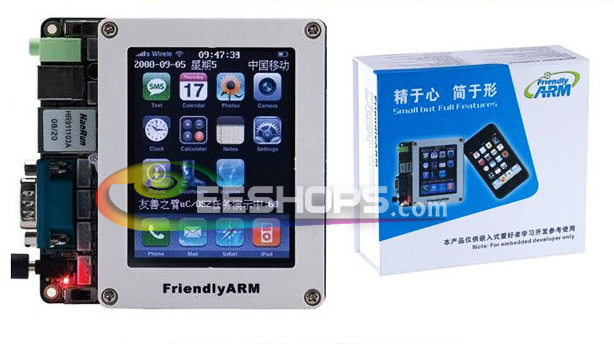

FriendlyARM 256M Mini2440 Arm9 S3C2440 Development Developing Board 256MB Nand Flash + 3.5" Touch LCD Ccreen

FriendlyARM 256M Mini2440 Arm9 S3C2440 Development Developing Board 256MB Nand Flash + 3.5

$135.99

  • Model: 40010
  • Units in Stock: 5000


Free shipping

Description

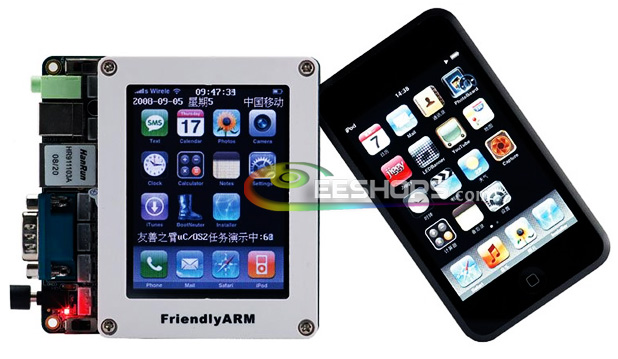

FriendlyARM 256M Mini2440 Arm9 S3C2440 Development Developing Board 256MB Nand Flash + 3.5" Touch LCD Ccreen


FriendlyARM 256M Mini2440 Arm9 S3C2440 Development Developing Board 256MB Nand Flash + 3.5" Touch LCD Ccreen

System:

Linux-2.6.32.2 + Qtopia-2.2.0,100% open platform

WINCE 6.0

Introduction:


The MINI2440 is an effecient ARM9 development board with a comprehensive price, it characterizes simple method and high performance-price ratio. Based on the Samsung S3C2440 microprocessor, it embodies professional stable CPU core power source chip and reset chip to ensure the stability of the system operation. The PCB on the MINI2440 board is designed to be 4-layers board, adopting the ENIG technology and professional equal-length wiring to ensure the completeness of the signals of the key signal wires; and manufactured and released under stringent quality control plans. With the help of this detailed manual, users are supposed to become proficient in the development process of embedded Linux and WinCE operating system, they are supposed to get the foundation, so long as they have obtained the basic and necessary knowledge about the C language, in two weeks.

FriendlyARM 256M Mini2440 Arm9 S3C2440 Development Developing Board 256MB Nand Flash + 3.5" Touch LCD Ccreen

Item
Specification
CPU
Samsung S3C2440(ARM920T core with MMC, Up to 532MHz)
SDRAM
64Mbyte
Flash
256M Nand Flash + 2M Nor Flash(BIOS installed)
(LCD Support)
STN LCD Displays:
Supports 3 types of LCD panels: 4-bit dual scan, 4-bit single scan, and 8-bit single scan display type
Supports the monochrome, 4 gray levels, and 16 gray levels
Supports 256 colors and 4096 colors for color STN LCD panel
Supports multiple screen size
Typical actual screen size:640 x 480, 320 x 240, 160 x 160, and others
TFT LCD Displays:
Supports 1, 2, 4 or 8-bpp (bit per pixel) palletized color displays for TFT
Supports 16, 24-bpp non-palletized true-color displays for color TFT
Supports maximum 16M color TFT at 24bit per pixel mode
Supports multiple screen size
Typical actual screen size: 1024x768 640 x 480, 320 x 240, 160 x 160, and others
USB Port
1 USB host and 1 USB device
Audio
Audio Input/Output
LAN
1 10M Ethernet interface (RJ-45 interface)
SD/MMC
SD card interface and holder
Cemera
All CEMERA signal pin out
UART
1 RS232 serial port, 3 serial ports available through 14pin (2.0mm space) interface
Jtag
standard JTAG interface)
buttons
6 Test buttons
LEDs
4 Status LEDs
I2C bus
AT24C08
AD input)
AD input test
PWM
PWM controlling speaker
RTC
RTC (battery backed)
Expansion
34pin GPIO expansion connector
40 pin System bus expansion connector
Power Suuply
+5V
Dimensions
100x100 mm

OS support

Linux-2.6.32.2/WindowsCE6/uCos2/2440test





FriendlyARM 256M Mini2440 Arm9 S3C2440 Development Developing Board 256MB Nand Flash + 3.5" Touch LCD Ccreen

FriendlyARM 256M Mini2440 Arm9 S3C2440 Development Developing Board 256MB Nand Flash + 3.5" Touch LCD Ccreen

FriendlyARM 256M Mini2440 Arm9 S3C2440 Development Developing Board 256MB Nand Flash + 3.5" Touch LCD Ccreen Features

  • Dimension: 100 x 100 mm
  • CPU: 400 MHz Samsung S3C2440A ARM920T (max freq. 533 MHz)
  • RAM: 64 MB SDRAM, 32 bit Bus
  • Flash: 256 MB NAND Flash and 2 MB NOR Flash with BIOS
  • EEPROM: 1024 Byte (I2C)
  • Ext. Memory: SD-Card socket
  • Serial Ports: 1x DB9 connector (RS232), total: 3x serial port connectors
  • USB: 1x USB-A Host, 1x USB-B Device
  • Audio Output: 3.5 mm stereo jack
  • Audio Input: Connector + Condenser microphone
  • Ethernet: RJ-45 10/100M (DM9000)
  • RTC: Real Time Clock with battery
  • Beeper: PWM buzzer
  • Camera: 20 pin Camera interface (2.0 mm)
  • LCD Interface
    • STN Displays:
      • Monochrome, 4 gray levels, 16 gray levels, 256 colors, 4096 colors
      • Max: 1024x768
    • TFT Displays:
      • Monochrome, 4 gray levels, 16 gray levels, 256 colors, 64k colors, true color
      • Max: 1024x768
    • 41 pin connector for FriendlyARM Displays (3.5" and 7") and VGA Board
  • Touch Panel: 4 wire resistive
  • User Inputs: 6x push buttons and 1x A/D pot
  • User Outputs: 4x LEDs
  • Expansion: 40 pin System Bus, 34 pin GPIO, 10 pin Buttons (2.0 mm)
  • Debug: 10 pin JTAG (2.0 mm)
  • Power: 5V connector, power switch and LED
  • Power Supply: regulated 5V (Mini2440: 0.3 A, Mini2440 + 3.5" LCD: 0.6 A, Mini2440 + 7" LCD: 1 A)
  • OS Support
    • Windows CE 5 and 6
    • Linux 2.6
    • Android

    • FriendlyARM 256M Mini2440 Arm9 S3C2440 Development Developing Board 256MB Nand Flash + 3.5" Touch LCD Ccreen

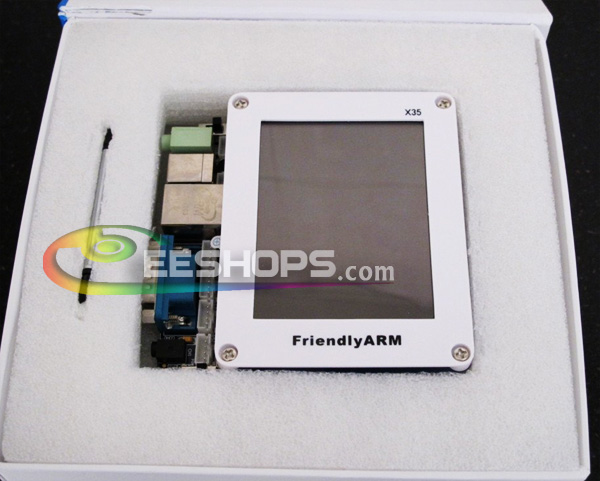

    FriendlyARM 256M Mini2440 Arm9 S3C2440 Development Developing Board 256MB Nand Flash + 3.5" Touch LCD CcreenPackage Includes:

    1. Mini2440 Learning Development Board x1
    2. Power adapter (+5 V)
    3. DB9 serial cable x1 Direct Connect
    4. Crossover cable x1
    5. USB cable x1
    6. Easy JTAG small board (available with H-JTAG emulation of single-step debugging) x1
    7. 3.5-inch touch screen x1 (with exquisite solid screen panel)
    8. DVD Development CD-ROM x1
    9. DVD Video x4
    10. WINCE6.0 FC9 VS2005x4
    11. Country embedded DVDx4

    • FriendlyARM 256M Mini2440 Arm9 S3C2440 Development Developing Board 256MB Nand Flash + 3.5" Touch LCD Ccreen

    • FriendlyARM 256M Mini2440 Arm9 S3C2440 Development Developing Board 256MB Nand Flash + 3.5" Touch LCD Ccreen


    Additional Information

    • Model: 40010
    • Shipping Weight: 1.5kg
    • 5000 Units in Stock

    Reviews: 0

    There are currently no product reviews.
