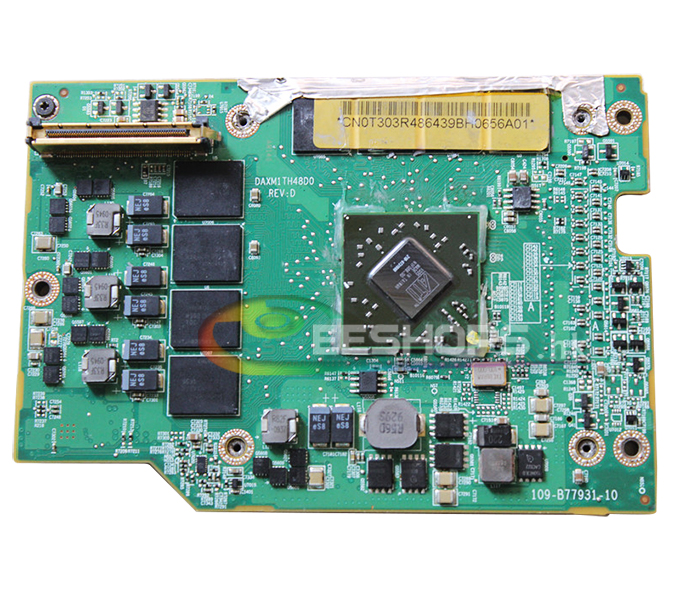

Original Dell Precision M6400 M6500 Mobile Workstation Laptop AMD ATI FirePro M7740 GDDR5 1GB Graphics Video Card VGA Board Replacement

$199.99

  • Model: M7740
  • Units in Stock: 100


Free shipping

Description

Original Dell Precision M6400 M6500 Mobile Workstation Laptop AMD ATI FirePro M7740 GDDR5 1GB Graphics Video Card VGA Board Replacement Free Shipping



Product Description

Not New,  Used, Fully Tested before shipping.

Warranty: DOA 90 days!



Original Dell Precision M6400 M6500 Mobile Workstation Laptop AMD ATI FirePro M7740 GDDR5 1GB Graphics Video Card VGA Board Replacement

ATI Mobility Radeo? HD 3600 Series - Overview

ATI FirePro M7740



The AMD ATI FirePro M7740 is a high-end professional graphics adapter for laptops. It suppports certified drivers for professional CAD (Computer aided Design) and DCC (Digital Content Creation) applications. In addition to the guarantee that these programs run flawlessly, the driver and BIOS are also optimized for OpenGL performance and even enables a few professional features in the GPU (e.g., anti-aliasing).

The core of the FirePro M7740 is based on the consumer Mobility Radeon HD 4860 under the RV740 architecture. The GPU is produced at TSMC in 40nm and offers 640 (or 128 5-D) unified shaders that support DirectX 10.1 and OpenGL 3.1. As for graphics memory, the card supports up to 1 GB of GDDR5 with a 128 bit memory bus. Due to the relatively fast speeds from GDDR5, the relatively small memory bus should not be a noticeable bottle neck.

The ATI FirePro / FireGL M7740 was introduced in the Dell Precision M6400 mobile workstation as an alternative to the already available Nvidia Quadro FX 3700M. AMD was able to compare both graphics cards in a subset of the SPECviewperf 10 OpenGL benchmark. The FirePro M7740 in the Dell Precision M6400 was compared to an Nvidia Quadro FX 3700M in an HP 8730w. According to AMD, the M7740 won in 8 subsets of the benchmark (ugnx-01, tcvis-01, sw-02, proe-04, maya-02, ensight-03, 3dsmax-04) and in the Composite Score (approx. 75 versus 63).

Compared to desktop workstation cards, the M7740 should perform better than the FirePro V7750, the latter of which includes only 320 stream processors and GDDR3 memory.



Like the Mobility Radeon HD 4860, the Mobility Fire Pro M7740 features the UVD 2 video processor for decoding of HD video streams. The GPU should be fully compliant to Blu-ray specs with the possibility to decode up two streams simultaneously.



Original Dell Precision M6400 M6500 Mobile Workstation Laptop AMD ATI FirePro M7740 GDDR5 1GB Graphics Video Card VGA Board Replacement  Features



Manufacturer

ATI

FirePro M7000 Series

FirePro M7820

800 @ 700 MHz

128 Bit @ 1000 MHz

FirePro M7740

640 @ 650 MHz

128 Bit @ 1000 MHz

Codename

RV740

Architecture

Terascale 1

Pipelines

640 - unified

Core Speed *

650 MHz

Memory Speed *

1000 MHz

Memory Bus Width

128 Bit

Memory Type

GDDR5

Max. Amount of Memory

1024 MB

Shared Memory

no

DirectX

DirectX 10.1, Shader 4.1

Transistors

826 Million

technology

40 nm

Features

OpenGL 3.1

Notebook Size

large

Date of Announcement

04.08.2009

Warranty:  Three Months (If removed sticker or sign, no warranty)



Remark:

1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.
4. Pls paste the heat-sink sticker as below photo before install the card





Package Content



Original Dell Precision M6400 M6500 Mobile Workstation Laptop AMD ATI FirePro M7740 GDDR5 1GB Graphics Video Card VGA Board Replacement Free Shipping x 1



Additional Information

  • Model: M7740
  • Shipping Weight: 0.2kg
  • 100 Units in Stock

Reviews: 0


There are currently no product reviews.
NOTE: Reviews require prior approval before they will be displayed



This product was added to our catalog on Friday 06 October, 2017.
